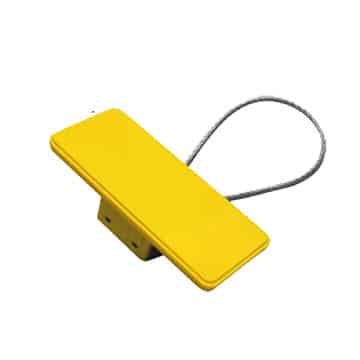

RFID Security Seal SS80

SparTag delivers RFID security seal SS80 operating in UHF technology. Made of a stainless steel cable and a heavy-duty ABS plastic locking buckle, the SparTag RFID security seal offers optimum safety and robustness compared to traditional RFID plastic clamps.

The RFID security seal are widely used for the automatic identification of containers and vehicles to ensure traceability of maintenance, they also provide evidence of tampering in the event of a dispute by activating a bit of state named TAG ALARM, thus providing immediate information on the state of the sealed (damaged / undamaged).

Equipped with a high sensitivity, the RFID security seal can be read easily by fixed readers placed at the entrance of the transit doors, the agent can therefore retrieve the information contained in the tag reliably

Category:

Description

Radio Frequency specification
Frequency: 860 – 960 MHz – UHF EPC Global
Reference RF Standard: ISO/IEC 18000-6C
RF Protocol: EPC Class 1 Gen2 / ISO/IEC 18000-6C
Technology: Passive
Integrated circuit NXP
Mechanical specification
Material Aluminum + ABS  or polystyrene in accordance with Restriction of Hazardous Substances (RoHS) listed in the European Directive 2002/EC.
IP Protection IP66
Operative Temperature – 30°C / + 80 °C
Storage Temperature – 30°C / + 80 °C
Size Electronic Part (flag) mm 42 x 115 x 4 (1” 2132” x 4” 1732” x 532”)
Wire standard lenght mm 200 (7” 78”)
Wire diameter mm 3,5 (964”)
Weight 61 g
ISO 17712:2013 yes
Package size cm
Package weight  6,1 kg (13lb)
Package number seal for box 100 pcs
Electronic specification
Reading distance handheld reader 3 m (dependig on reader) (9′)
Reading distance gate reader 8 m (dependig on reader) (26′)
Quality: 100% performance tested
User Memory: Yes
Read / write cycles: 10000
Memory size: from 128 bit up to 448 bit of EPC Memory;up to 640 bit of User Memory
Password protection: yes
Tamper Detection: yes
TID (tag unique identification): yes
S/N in memory (same of seal): yes
Data retention: 20 years
Integration with handheld reader: commercial PDA, OS ANDROID
Integration with gate reader commercial industrial reader

SparTag delivers RFID security seal SS80 operating in UHF technology. Made of a stainless steel cable and a heavy-duty ABS plastic locking buckle, the SparTag RFID security seal offers optimum safety and robustness compared to traditional RFID plastic clamps.

The RFID security seal are widely used for the automatic identification of containers and vehicles to ensure traceability of maintenance, they also provide evidence of tampering in the event of a dispute by activating a bit of state named TAG ALARM, thus providing immediate information on the state of the sealed (damaged / undamaged).

Equipped with a high sensitivity, the RFID security seal can be read easily by fixed readers placed at the entrance of the transit doors, the agent can therefore retrieve the information contained in the tag reliably
