UHF RFID reader PT71A

The UHF RFID reader PT71A PDA features a 5.2 inch FHD display and runs on Android 6.0, it features a powerful 1.3GHz Quadcore processor for fast data processing, as well as several possible options such as UHF or HF / NFC player , 1D / 2D scanner, iris recognition and 13MP High Definition camera.

Powerful and endowed with a neat design, the UHF RFID reader PT71A PDA is light, discreet and has several communication features: 2G / 3G / 4G / LTE, Wifi, Bluetooth, GPS.

IP65 certified, its robust design allows use in difficult environments such as logistics or construction sites, it withstands repeated falls from a height of 1.8m and water and dust.
The UHF RFID reader PT71A PDA offers an exceptional price / performance ratio and can meet all the requirements of your teams in the field.

Categories: ,

Description

  • Features
    Android 6.0 OS 4G/Dual-band WIFI
       5.2” IPS 1080P Screen 5000mAh Powerful Battery
        IP65 Sealing   1.8m Drop Proof
    Functions
    Industry-leading Scan Head   UHF RFID
       NFC     Iris Scanning
    13MP Autofocus Camera    GPS/BDS
Physical Characteristics
Dimensions 164.2*78.8*17.5mm/6.46*3.10*0.69in
Weight <321g/11.32oz
Display 5.2” IPS LTPS FHD 1920×1080
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power Main battery: Li-ion, rechargeable, 5000mAh
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces USB 2.0 Type-C, OTG
Audio Speaker, 2 microphones
Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors Gravity sensor, light sensor, proximity sensor, vibration motor
User Environment
Operating Temp. 4°F to 122°F / -20°C to 50°C
Storage Temp. -40°F to 158°F / -40°C to 70°C
Humidity 5% RH – 95% RH non condensing
Drop Specification Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification 1000 x 0.5m/1.64ft falls at room temperature
Sealing IP65 per IEC sealing specifications
ESD ±8KV air discharge, ±4KV conductive discharge
Performance
CPU Cortex-A53 Quad-core 1.3GHz
RAM+ROM 2GB+16GB
Expansion Supports up to 32 GB Micro SD card
Developing Environment
Operating System Android 6.0
SDK Software Development Kit
Language Java
Tool Eclipse / Android Studio
Communication
WLAN IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (Europe) 2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America) 2G: 850/900/1800/1900MHz
3G: 850/900/1700/1900MHZ
4G: B2, B4, B7, B12, B17
WWAN (China) 2G: 900/1800MHz
3G: 900/1900/2000/2100MHz
4G: B1, B3, B5, B38, B39, B40, B41
WWAN (Others) Depending on the country’s ISP
Bluetooth Bluetooth 4.0, BLE
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
UHF RFID
Frequency 865MHz-868MHz / 920-925MHz / 902-928MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Circular polarization (1dBi)
Power 1W (27dBm, +19dBm to +30dBm adjustable)
R/W ranges 1m
Note *Ranges and rates depend on tags and environment
Barcode Scanning
1D Linear Scanner Zebra SE965 / Honeywell N4313
2D Imager Scanner Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note *This function is optional
Camera
Camera 13MP autofocus rear camera with flash, optional 5MP front camera
NFC
Frequency 13.56MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc.
Range 2-4cm
Iris Recognition
Rate <150ms
Range 20-40cm
FAR 1/10000000
Note Protocol:ISO/IEC 19794-6,GB/T 20979-2007
Note2 *Front iris only
*This function is optional

The UHF RFID reader PT71A PDA features a 5.2 inch FHD display and runs on Android 6.0, it features a powerful 1.3GHz Quadcore processor for fast data processing, as well as several possible options such as UHF or HF / NFC player , 1D / 2D scanner, iris recognition and 13MP High Definition camera.

Powerful and endowed with a neat design, the UHF RFID reader PT71A PDA is light, discreet and has several communication features: 2G / 3G / 4G / LTE, Wifi, Bluetooth, GPS.

IP65 certified, its robust design allows use in difficult environments such as logistics or construction sites, it withstands repeated falls from a height of 1.8m and water and dust.
The UHF RFID reader PT71A PDA offers an exceptional price / performance ratio and can meet all the requirements of your teams in the field.



Adapter(EU)

PWR-C71-5V2A-EU

Adapter(UK)

PWR-C71-5V2A-UK

Adapter(US)

PWR-C71-5V2A-US

USB Cable

DC-C71-TypeC

Lanyard

SG-C71-LYD-GY

Sim Tray Ejector

SIM-TRAY-EJECTOR

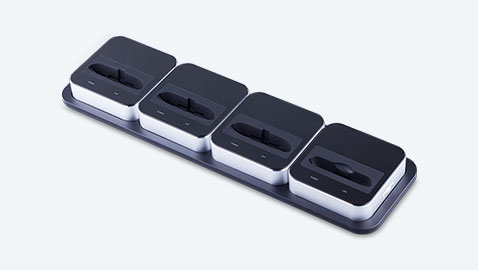

Cradle(Optional)

CRD-C71-SCC

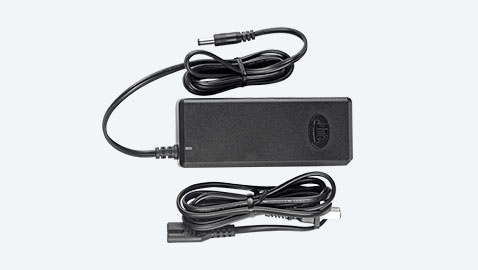

Adapter(CN)/ (Optional)

DCPWR-C7X-12V5A-CN

Datasheet UHF RFID reader PT71A
