Description
 SDK: Support Android / iOS |
 5200mAh Powerful Battery |
 1.77-inch Display, 128 x 160 |
 Bluetooth 4.0, BLE |
Functions
 UHF RFID (Impinj R2000 Chip, Read Range > 15m) |
 Barcode Scanning (Optiona |
| Physical Characteristics | |
| Dimensions | 282 x 117.5 x 32 mm / 11.10 x 4.63 x 1.26 in. |
| Weight | 334 g / 11.78 oz. (with battery) |
| Display | 1.77 inch, 128 x 160 |
| Power | Battery specification: 5200 mAh Standby: over 70 hours (keeping bluetooth connected) Continuous use: up to 6 hours (UHF reading) Charging time: 3-4 hours (with standard adaptor and USB cable) |
| Buzzer | Support |
| Interfaces | Micro-USB |
| Indicator LED | Power, Work, Bluetooth |
| Product Material | Plastic |
| Colour | White |
| User Environment | |
| Operating Temp. | -20℃~+50℃ |
| Storage Temp. | -40℃~+70℃ |
| Humidity | 5%RH – 95%RH non condensing |
| Drop Specification | Multiple 1.5m / 4.9ft. drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m / 1.64ft. falls at room temperature |
| ESD | ±15KV air discharge, ±8KV conductive discharge |
| Developing Environment | |
| SDK | Android / IOS |
| Language | Java / Objective-C |
| Tool | Android Studio / Xcode |
| Performance | |
| MCU | Cortex-M3 72MHz |
| Storage | 50000 tags |
| Communication | |
| Bluetooth | Bluetooth 4.0, BLE |
| UHF RFID | |
| Engine | CM2000-1 module based on Impinj Indy R2000 |
| Frequency | 920-925 MHz / 902-928 MHz / 865-868 MHz |
| Antenna | Linear Polarized antenna (4dBi) |
| R/W ranges | > 28 m(indoors); > 15 m(open outdoors, Impinj MR6 tag) |
| Fastest Read Rate | 900+ tags/sec |
| Note | *Ranges and rates depend on tags and environment |
| Barcode Scanning | |
| 2D Imager Scanner | SE2707 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Note | *This function is optional |
The ST-88VH RFID racket reader integrates the UHF R2000 RFID module and can read tags up to 15m away. It also has a 1D / 2D barcode reader.
Data transfer to a mobile terminal (PDA, smartphone, computer) is carried out intuitively by Bluetooth or by USB. Thanks to its 5200mAh battery, the RFID racket reader has an operating autonomy of 6 hours, it can be used in normal operation for more than a day, which makes it ideal for carrying out stock inventories in different areas when the application requires a long-range reader without a screen because of environmental constraints (use of gloves, etc.)
Adapter（CN）
PWR-R2-5V2A-CN
Adapter（EU）
PWR-R2-5V2A-EU
Adapter（UK）
PWR-R2-5V2A-UK
Adapter（US）
PWR-R2-5V2A-US

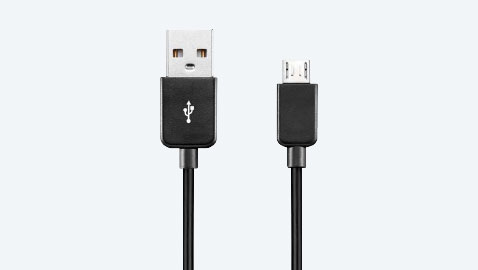

USB Cable
DC-R2-USB
