Description
-
Features
Android 6.0 OS4G/Dual-band WIFI
5.2” IPS 1080P Screen5000mAh Powerful Battery
IP65 Sealing
1.8m Drop ProofFunctionsIndustry-leading Scan HeadHF RFID
NFC
Iris Scanning13MP Autofocus CameraGPS/BDS
| Physical Characteristics | |
| Dimensions | 164.2*78.8*17.5mm/6.46*3.10*0.69in |
| Weight | ＜321g/11.32oz |
| Display | 5.2” IPS LTPS FHD 1920×1080 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | Main battery: Li-ion, rechargeable, 5000mAh Standby: over 350 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) |
| Expansion Slot | 1 slot for SIM card, 1 slot for SIM or TF card |
| Interfaces | USB 2.0 Type-C, OTG |
| Audio | Speaker, 2 microphones |
| Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
| Sensors | Gravity sensor, light sensor, proximity sensor, vibration motor |
| User Environment | |
| Operating Temp. | 4°F to 122°F / -20°C to 50°C |
| Storage Temp. | -40°F to 158°F / -40°C to 70°C |
| Humidity | 5% RH – 95% RH non condensing |
| Drop Specification | Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m/1.64ft falls at room temperature |
| Sealing | IP65 per IEC sealing specifications |
| ESD | ±8KV air discharge, ±4KV conductive discharge |
| Performance | |
| CPU | Cortex-A53 Quad-core 1.3GHz |
| RAM+ROM | 2GB+16GB |
| Expansion | Supports up to 32 GB Micro SD card |
| Developing Environment | |
| Operating System | Android 6.0 |
| SDK | Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| Communication | |
| WLAN | IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna |
| WWAN (Europe) | 2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B1, B3, B5, B7, B8, B20, B40 |
| WWAN (America) | 2G: 850/900/1800/1900MHz 3G: 850/900/1700/1900MHZ 4G: B2, B4, B7, B12, B17 |
| WWAN (China) | 2G: 900/1800MHz 3G: 900/1900/2000/2100MHz 4G: B1, B3, B5, B38, B39, B40, B41 |
| WWAN (Others) | Depending on the country’s ISP |
| Bluetooth | Bluetooth 4.0, BLE |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| UHF RFID | |
| Frequency | 865MHz-868MHz / 920-925MHz / 902-928MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular polarization (1dBi) |
| Power | 1W (27dBm, +19dBm to +30dBm adjustable) |
| R/W ranges | 1m |
| Note | *Ranges and rates depend on tags and environment |
| Barcode Scanning | |
| 1D Linear Scanner | Zebra SE965 / Honeywell N4313 |
| 2D Imager Scanner | Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Note | *This function is optional |
| Camera | |
| Camera | 13MP autofocus rear camera with flash, optional 5MP front camera |
| NFC | |
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4cm |
| Iris Recognition | |
| Rate | <150ms |
| Range | 20-40cm |
| FAR | 1/10000000 |
| Note | Protocol：ISO/IEC 19794-6，GB/T 20979-2007 |
| Note2 | *Front iris only *This function is optional |
The rugged mobile computer PT71H features a 5.2 inch FHD display and runs on Android 6.0, it features a powerful 1.3GHz Quadcore processor allowing fast data processing, as well as several possible options such as the HF / NFC reader, scanner 1D / 2D, iris recognition and 13MP high definition camera.
High-performance and well-designed, the rugged mobile computer PT71H is lightweight, discreet and has several communication features: 2G / 3G / 4G / LTE, WiFi, Bluetooth, GPS.
IP65 / IP67 certified, its robust design allows for use in difficult environments such as logistics or construction sites, it withstands repeated falls from a height of 1.8m and water and dust.
The rugged mobile computer PT71H smartphone offers an exceptional price / performance ratio and can meet all the requirements of your teams in the field.
Adapter（EU）
PWR-C71-5V2A-EU
Adapter（UK）
PWR-C71-5V2A-UK
Adapter（US）
PWR-C71-5V2A-US
USB Cable
DC-C71-TypeC
Lanyard
SG-C71-LYD-GY
Sim Tray Ejector
SIM-TRAY-EJECTOR

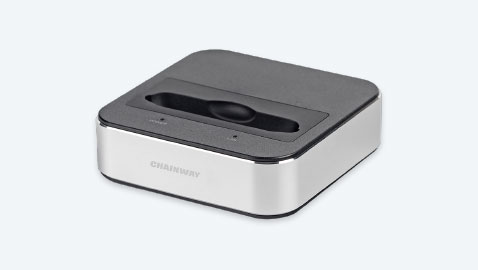

Cradle（Optional）
CRD-C71-SCC

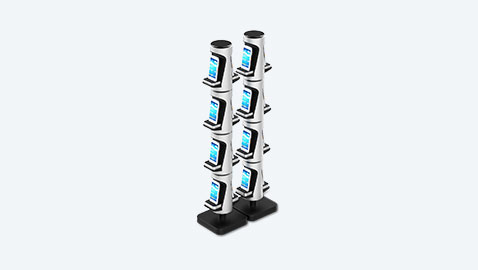

Charging Rack（Optional）
RACK-CC-8
Holster
SG-C71-CPH
